Medical heater MS-980S
Model name / item name
AC220V / 60HZ
Maximum power consumption

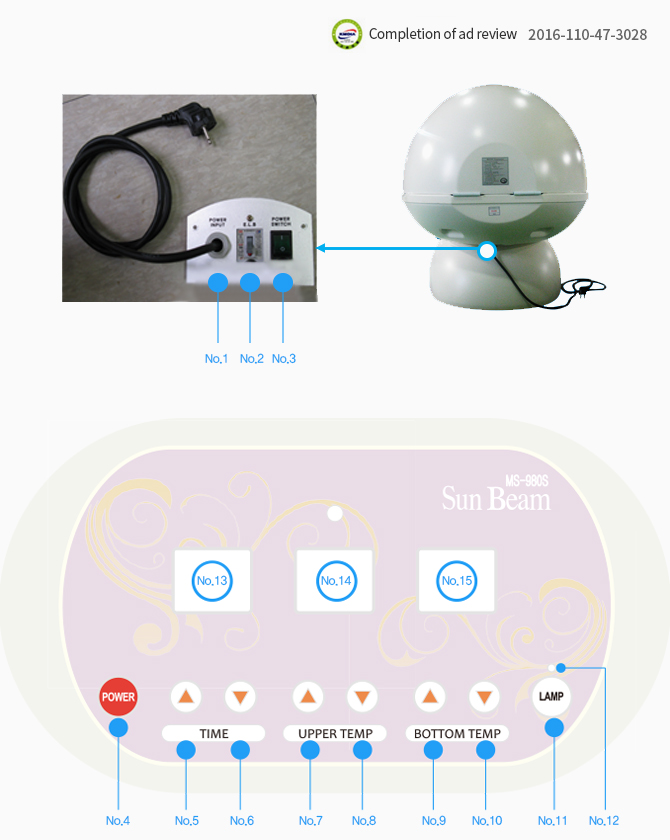

|No. 01||Power code||No. 09||Bottom temperature button (Increase temperature)|
|No. 02||Earth leakage circuit breaker||No. 10||Bottom temperature button (Decrease temperature)|
|No. 03||Main power switch||No. 11||LED switch|
|No. 04||Power switch||No. 12||LED operation display lamp|
|No. 05||Time button (Increase time)||No. 13||Operation time display|
|No. 06||Time button (Decrease time)||No. 14||Top temperature display|
|No. 07||Top temperature button(Increase temperature)||No. 15||Bottom temperature display|
|No. 8||Top temperature button(Decrease temperature)|
How to operate / How to use
Connect the main power button.
Operate the earth leakage circuit breaker, and turn on the main power switch.
Leave the PCB power switch as 'ON'.
Set the operation time.
Adjust the temperature of the upper part of the device. (Adjust the temperature in units of 5˚)
Adjust the temperature of the lower part of the device. (Adjust the temperature in units of 5˚)
Turn on the LED lamp switch if you wish to feel the LED light.
Operation time of approximately 30~40 minutes is appropriate, and you may adjust the time in accordance with your body type or condition.
Precautions in use
※ This product is a medical device where you must carefully read its precautions and instructions prior to use.
Do not touch or allow contact with the heated thermal lamp.
Appropriately adjust the top·bottom temperature by pressing the top·bottom temperature adjustment button.
Thermotherapy is best if used regularly and continuously 2~3 times a day within 1 hour for each use.
Extended use for a single time may decrease its effects, and impose risks of low-temperature burns.
Do not use in humid environments such as the washroom, and use in indoors.
Carefully read the instructions prior to device operation.
Do not apply strong force upon the device, and do not place heavy objects on top of the device.
Do not use with other devices and upon spilling water on the device.
Upon discovering power outage or malfunction, stop using the device and turn off the power, and remove the main power code from the power outlet.
Remove the power code from the outlet when the device is not in use.
Keep away from heated products such as heaters, stove, etc.
Do not disassemble or repair the device upon malfunction, and instead bring it to the store or the manufacturing site.
