Medical heater MS-980B
AC220V / 60HZ
Silver ＆ Wine
Maximum power consumption
Pain alleviation, heating

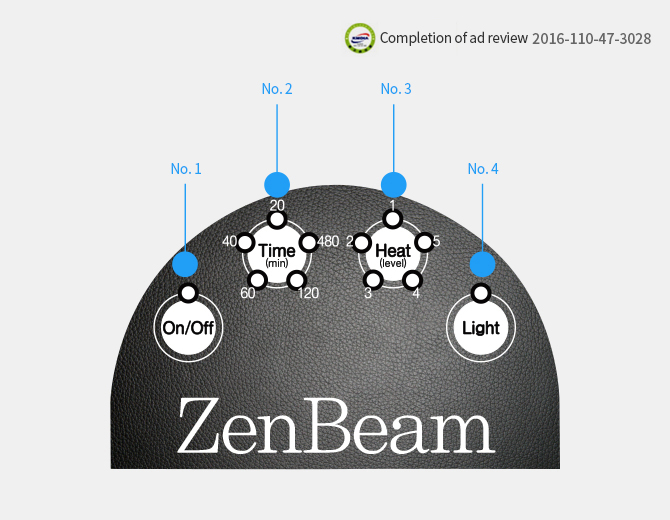

|No. 01||Power switch||Power ON/OFF|
|No. 02||Time adjustment button||Heating time adjustment (20 ~ 480 minutes)|
|No. 03||Temperature adjustment button||Temperature adjustment(Adjust to Level 1 ~ 5)|
|No. 04||LED setting button||Internal LED setting(AUTO ON/OFF)|
Preparations and how to operate
Carefully read the instructions and manual.
Check the power voltage(220V).
Connect the power code to AC220V outlet.
Turn on the power switch.
Press the time adjustment button and set the desired time. The time can be set to 20 mins, 40 mins, 60 mins, 120 mins continuous, etc. (8 hours)
Press the temperature adjustment switch and set the desired temperature.
Use the device when the appropriate temperature is maintained 5 minutes after turning on the power.
The method of heating can be used in various ways as following, which you may choose according to your needs.
Turn on the LED lamp switch if you wish to feel the LED light.
Operation time of approximately 30~40 minutes is appropriate, and you may adjust the time in accordance with your body type or condition.
Precautions in use
※ This product is a medical device where you must carefully read its precautions and instructions prior to use.
Use the device in accordance with your doctor's prescriptions and instructions.
Do not alter or reconstruct the device.
Do not use the device for other purposes.
Use the device only for appropriate hours of use. (Daily hours of usage: 1~8 hours, less than 60 minutes upon using high temperature)
Beware of the risks and hazards upon using with other devices.
Immediately stop using the device upon discovering any malfunction.
Immediately turn off the power switch upon a power outage.
Immediately stop using the device upon any injury or damage to the body, and consult your doctor.
The device must not be used by the following
Do not use in direct contact with the skin at the time of use.
Clothing with metal buckles should be avoided.
Device must be used in appropriate intensity as overuse is not advocated.
